NA2XY

  • Min. Bending radius 15xD
  • Max operating temperature 90°
  • Max short circuit temperature 250°
  • Rated voltage Uo/U 0,6 /1 KV
  • AC test voltage 3,5 KV
  • Flame propagation test on single cable EN 60332-1

Description

XLPE insulated, single core underground cable with aluminium conductor

Applications

This cable having very low dielectric loss is used indoor, in cable ducts and in industrial plants or switching stations where mechanical damage is not anticipated. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.

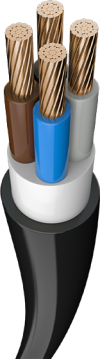

  1. Outer sheath Polyvinyl Chloride
  2. Filler Polyvinyl Chloride
  3. Insulation XLPE Polyethylene
  4. Conductor Stranded Aluminum
Rated Cross-section
Overall Diameter of Cable
Net Weight (Approx.)
Conductor DC Resistance at 20C
Current Carrying Capacity
mm2 mm kg ohm/km ampere 1 ampere 2
1 Core In Ground In Air
 1 x 16 9,7 105 1,91 – –
 1 x 25 10,9 154 1,20 – –
 1 x 35 12,1 195 0,868 137 131
 1 x 50 13,8 250 0,641 163 161
 1 x 70 15,5 325 0,443 201 205
 1 x 95 17,7 434 0,320 240 253
 1 x 120 19,6 521 0,253 274 296
 1 x 150 21,7 640 0,206 308 341
 1 x 185 24,1 785 0,164 350 395
 1 x 240 27,2 1018 0,125 408 475
2 Cores
2×10 14,4 292 3,080 – –
2×16 16,6 392 1,91 – –
2×25 21,0 608 1,20 111 100
2×35 23,4 168 0,868 132 122
2×50 27,0 1016 0,641 157 147
31/2Cores
 3×10 15,4 338 3,080 – –
 3×16 17,6 446 1,91 – –
 3×25 22,3 678 1,20 111 100
 3×35 24,9 864 0,868 132 122
 3×50 28,8 1147 0,641 157 147
 3×70 32,7 1507 0,443 195 180
 3×95 37,3 1992 0,32 233 232
 3×120 41,2 2398 0,253 266 270
 3×150 46,0 2991 0,206 299 308
 3×185 51,2 3688 0,164 340 357
 3×240 58,0 4786 0,125 401 435
4 Cores
 4 x 25 24,7 834  1,20 111 100
 4 x 35 27,6 1065  0,868 132 122
 4 x 50 31,9 1406  0,641 157 147
 4 x 70 36,4 1868  0,443 195 180
 4 x 95 41,4 2457  0,320 233 232
 4 x 120 45,7 2950  0,253 266 270
 4 x 150 52 3810  0,206 299 308
 4 x 185 57,7 4668  0,164 340 357
 4 x 240 65,6 6109  0,125 401 435
5 Cores
5 x 16 23,1 738 1,91 – –
5 x 25 26,9 992 1,20 111 100
5 x 35 30,4 1294 0,868 132 122
5 x 50 35,4 1734 0,641 157 147
5 x 70 40,3 2289 0,443 195 180
5 x 95 46,5 3097 0,320 233 232
