Description

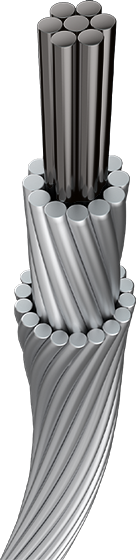

Uninsulated overhead aluminum wire
Applications
Used for overhead transmission lines.
- Conductor Stranded Aluminum (Class 2)
Rated Cross-section |
Overall Diameter of Cable |
Net Weight (Approx.) |
Conductor DC Resistance at 20C |
Current Carrying Capacity |
|
| mm2 | mm | kg | ohm/km | ampere 1 | |
| ACSR | |||||
| 16/2,7 | 5,55 | 64,9 | 17,818 | 111 | |
| 25/4,2 | 6,9 | 100,3 | 1,1521 | 142 | |
| 35/6,2 | 8,4 | 148 | 0,7774 | 175 | |
| 50/8 | 9,6 | 195,1 | 0,5951 | 210 | |
| 70/11 | 11,4 | 276 | 0,4218 | 265 | |
| 95/16 | 13,5 | 385 | 0,3007 | 330 | |
| 120/19 | 15,15 | 470,9 | 0,2440 | 390 | |
| 120/27 | 15,4 | 528 | 0,2531 | 3375 | |
| 150/19 | 16,75 | 554 | 0,2046 | 450 | |
| 150/24 | 17,1 | 598,9 | 0,2039 | 450 | |
| 150/34 | 17,5 | 675 | 0,2061 | 450 | |
| 185/24 | 18,9 | 704,9 | 0,1540 | 520 | |
| 185/29 | 18,82 | 727,9 | 0,1591 | 510 | |
| 185/43 | 19,6 | 846 | 0,1559 | 515 | |
| 240/32 | 21,6 | 920,9 | 0,1182 | 605 | |
| 240/28 | 21,55 | 952 | 0,1222 | 610 | |
| 240/56 | 22,4 | 1106 | 0,1197 | 610 | |
| 300/39 | 23,95 | 1132 | 0,0958 | 710 | |
| 300/48 | 24,05 | 1186 | 0,0978 | 690 | |
| 300/67 | 24,05 | 1323 | 0,1000 | 680 | |
| 330/43 | 24,5 | 1255 | 0,869 | 730 | |
| 400/64 | 25,2 | 1572 | 0,0741 | 860 | |
| 400/93 | 29,1 | 1851,1 | 0,0741 | 860 | |
| 400/51 | 27,45 | 1490,6 | 0,0722 | 825 | |
| 500/54 | 30,6 | 1852,3 | 0,0588 | 945 | |
