H1Z2Z2-K

  • Min. Bending radius 5D
  • Max operating temperature 90°
  • Max short circuit temperature 250°
  • Rated voltage Uo/U AC:1000/1000 V DC:1500/1500 V
  • AC test voltage 6.5 kV
  • Flame propagation test on single cable IEC/EN 60754-1/2

escription

Halogen-free, fire-resistant, tinned copper cable

Applications

Intended for the interconnection within photovoltaic systems such as solar panel arrays.

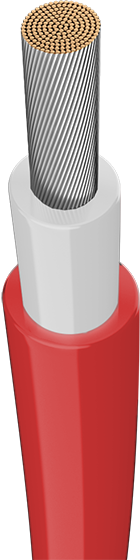

  1. Sheath Halogen-free cross-linked, flame retardant compound
  2. Insulation Halogen-free cross-linked compound
  3. Conductor Class 5 flexible tinned copper conductor



Core Number and Nominal Cross Section Overall Diameter of Cable Net Weight (Approx.) Conductor Resistance at 20C
Conductor Resistance at 90C
mm kg ohm/km ohm/km
1×1.5 4.6 36 13.700 17.468
1×2.5 5 46 8.210 10.468
1×4 5.6 62 5.090 6.490
1×6 6.1 82 3.390 4.322
1×10 7.1 125 1.950 2.486
1×16 8.5 190 1.240 1.581
1×25 10.4 285 0.795 1.013
1×35 11.5 385 0.565 0.720
1×50 13.7 540 0.393 0.501
1×70 15.8 740 0.277 0.353
1×95 17.3 965 0.210 0.267
1×120 19.1 1210 0.164 0.209
1×150 21.4 1495 0.132 0.168
1×185 24.9 1885 0.108 0.137
1×240 27.3 2395 0.082 0.104
