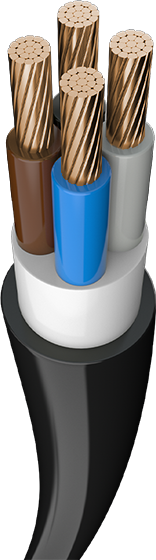

YVV-NYY

  • Min. Bending radius 12xD
  • Max operating temperature 70°
  • Max short circuit temperature 160°
  • Rated voltage Uo/U 0,6 /1 KV
  • AC test voltage 3,5 KV
  • Flame propagation test on single cable EN 60332-1

Description

PVC insulated, low voltage power cables

Applications

Used in underground which there not much outer factors and inside cable conduits.

  1. Outer sheath Polyvinyl Chloride
  2. Insulation Polyvinyl Chloride
  3. Insulation Polyvinyl Chloride
  4. Conductor Stranded Aluminum
Rated Cross-section
Overall Diameter of Cable
Net Weight (Approx.)
Conductor DC Resistance at 20C
Currant Carring Capacity
mm2 mm kg ohm/km ampere
31/2 Cores In Ground In Air
3 x 16 + 1 x 10  21,5 952 1,15/1,83  102 79
 3 x 25 + 1 x 16  24,5  1363  0,727/1,15  133  106
3 x 35 + 1 x 25  26,8  1702  0,524/1,15  159  129
 3 x 50 + 1 x 25  30,9  2310  0,387/0,524  188  157
 3 x 70 + 1 x 35  34,4  3110  0,268/0,387  232  199
 3 x 95 + 1 x 50  39,6  4209  0,193/0,387  280  246
 3 x 120 + 1 x 70  43,9  5308 0,153/0,268  318  285
 3 x 150 + 1 x 70  47,4  6253 0,124/0,268  359  326
 3 x 185 + 1 x 95  52,4  7843 0,09910/0,193  406  373
 3 x 240 + 1 x 120  59,9  10132  0,153/0,0754  473  445
4 Cores In Ground In Air
 4 x 1,5  12  222  12,1  27  18,5
 4 x 2,5  13  280  7,41  36  25
 4 x 4  15  398  4,61  47  34
 4 x 6  16,2  500  3,08  59  43
 4 x 10  19  734  1,83  79  60
 4 x 16  21,5  1026  1,15  102  80
 4 x 25  24,9  1490  0,727  133  101
 4 x 35  27,6  1947  0,524  159  126
 4 x 50  31,9  2621  0,387  188  153
 4 x 70  35,9  3586  0,268  232  199
 4 x 95  41,2  4841  0,193  280  246
 4 x 120  45,5  6004  0,153  318  285
 4 x 150  50,8  7449  0,124  359  326
 4 x 185  55,6  9186  0,0991  406  374
 4 x 240  64,7  12147  0,0754  473  445
