NA2XH

  • Min. Bending radius 12xD 15xD
  • Max operating temperature 90°
  • Max short circuit temperature 250°
  • Rated voltage Uo/U 0,6 /1 KV
  • AC test voltage 3,5 KV
  • Flame propagation test on single cable EN 60332-3-24 Cat. C

Description

Halogen free, flame retardant, single core cables with aluminium conductor

Applications

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.

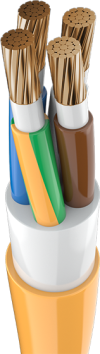

  1. Outer sheath Halogen free flame retardant
  2. Filler Halogen free flame retardant
  3. Insulation XLPE – Polyethylene
  4. Conductor Solid or Standart Copper (Class 1 or Class 2)
Rated Cross-section
Overall Diameter of Cable
Net Weight (Approx.)
Conductor DC Resistance at 20C
Current Carrying Capacity
mm2 mm kg ohm/km ampere 1 ampere 2
1 Core In Ground In Air
 1 x 16 8,7 106 1,91 – –
 1 x 25 10,9 153 1,20 – –
 1 x 35 12,1 195 0,868 137 131
 1 x 50 13,8 250 0,641 163 161
 1 x 70 15,5 325 0,443 201 205
 1 x 95 17,7 434 0,320 240 253
 1 x 120 19,6 521 0,253 274 296
 1 x 150 21,7 640 0,206 308 341
 1 x 185 24,1 785 0,164 350 395
 1 x 240 27,2 1018 0,125 408 475
2 Cores
2×16 16,6 392 1,91 – –
2×25 21,0 608 1,20 111 100
2×35 23,4 168 0,868 132 122
2×50 27,0 1016 0,641 157 147
3 Cores
 3×16 17,6 446 1,91 – –
 3×25 22,3 678 1,20 111 100
 3×35 24,9 864 0,868 132 122
 3×50 28,8 1147 0,641 157 147
 3×70 32,7 1507 0,443 195 180
 3×95 37,3 1992 0,32 233 232
 3×120 41,2 2398 0,253 266 270
 3×150 46,0 2991 0,206 299 308
 3×185 51,2 3688 0,164 340 357
 3×240 58,0 4786 0,125 401 435
31/2Cores
3×16 +1×10 19,5 562 1,91 – –
3×25 +1×16 23,9 785 1,2 111 100
3×50 +1×25 26,5 981 0,868 132 122
3×70 +1×35 31,0 1318 0,641 157 147
3×95 +1×50 34,9 1702 0,443 195 180
3×120 +1×70 39,9 2248 0,320 233 232
3×16 +1×10 44,5 2774 0,253 266 270
3×150 +1×70 48,7 3247 0,206 299 308
3×185 +1×95 54,7 4180 0,164 340 357
3×240 +1×120 61,5 5323 0,125 401 435
4 Cores
 4 x 25 24,7 834  1,20 111 100
 4 x 35 27,6 1065  0,868 132 122
 4 x 50 31,9 1406  0,641 157 147
 4 x 70 36,4 1868  0,443 195 180
 4 x 95 41,4 2457  0,320 233 232
 4 x 120 45,7 2950  0,253 266 270
 4 x 150 52 3810  0,206 299 308
 4 x 185 57,7 4668  0,164 340 357
 4 x 240 65,6 6109  0,125 401 435
5 Cores
5 x 16 23,1 738 1,91 – –
5 x 25 26,9 992 1,20 111 100
5 x 35 30,4 1294 0,868 132 122
5 x 50 35,4 1734 0,641 157 147
5 x 70 40,3 2289 0,443 195 180
5 x 95 46,5 3097 0,320 233 232
