NHXMH

  • Min. Bending radius 12xD
  • Max operating temperature 90°
  • Max short circuit temperature 250°
  • Rated voltage Uo/U 300/500 V
  • AC test voltage 2 KV
  • Flame propagation test on single cable EN 60332-3-24 Cat. C

Description

Halogen free, flame retardant multicore cables

Applications

Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.

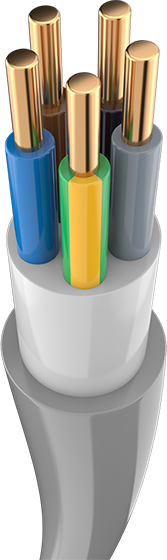

  1. Outer sheath Polyvinyl Chloride
  2. Filler Polyvinyl Chloride
  3. Insulation Cross linkable polyethylene
  4. Conductor Solid or Standart Copper (Class 1 or Class 2)
Rated Cross-section
Overall Diameter of Cable
Net Weight (Approx.)
Conductor DC Resistance at 20C
Current Carrying Capacity
mm2 mm kg ohm/km ampere
2 Cores In Ground
 2 x 1,5  8,3  101  12,1  22
 2 x 2,5  9,1  130  7,41  30
 2 x 4  10,4  182  4,61  40
 2 x 6  11,4  235  3,08  51
 2 x 10  14,2  379  1,83  70
 2 x 16  16,8  548  1,15  98
3 Cores
  3 x 1,5  8,7  118  12,1  22
  3 x 2,5  9,6  157  7,41  30
  3 x 4  11  224  4,61  40
  3 x 6  12,4  303  3,08  51
  3 x 10  15  475  1,83  70
  3 x 16  18,2  711  1,15  98
4 Cores
 4 x 1,5  9,3  140  12,1  18,5
  4 x 2,5  10,3  189  7,41  25
  4 x 4  12,3  286  4,61  34
  4 x 6  13,9  389  3,08  43
  4 x 10  16,2  589 1,83  60
  4 x 16  19,8  888  1,15  80
5 Cores
  5 x 1,5  10  165  12,1  18,5
  5 x 2,5  11,1  224  7,41  25
  5 x 4  13,1  353  4,61  34
  5 x 6  15  467  3,08  43
  5 x 10  17,6  714  1,83  60
  5 x 16  21,9  1098  1,15  80
