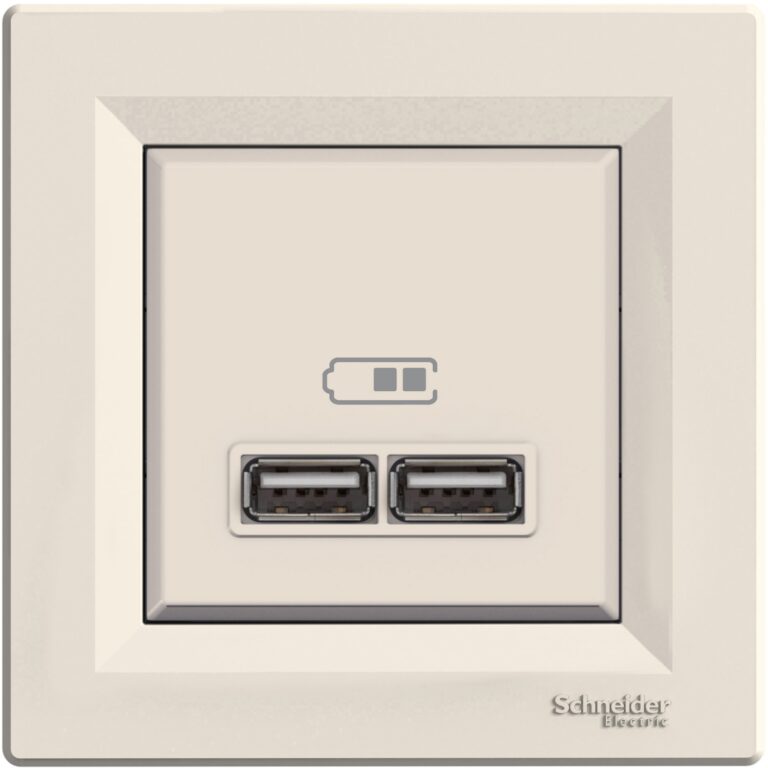

range Asfora product or component type USB charger output current 2.1 A integrated connection type 2 USB 2.0 port 5 V DC, maximum load current: 2.1 A device application Charger device mounting Flush device presentation Mechanism with fixing frame colour tint Cream surface treatment Untreated fixing mode By screws By claws type of packing Flow-pack [Ue] rated operational voltage 100…240 V AC +/- 10 % at 50/60 Hz power consumption in W 0.1 W nominal output power 10.5 W input power 12 W service life in hours 30000 h 10.5 W material ABS (acrylonitrile butadiene-styrene): centre plate PC (polycarbonate) GF10 FR: casing PC (polycarbonate) GF10 FR: internal cover protection type Short-circuit protection number of terminals 2 screw terminals clamping connection capacity 2 x 0.75…2 x 2.5 mm² for rigid cable(s) 2 x 0.75…2 x 2.5 mm² for flexible cable(s) 2 x 0.75…2 x 2.5 mm² for stranded cable(s) wire stripping length 8 mm product compatibility Mobile/tablet Mac iOS Mobile/tablet Android Mobile/tablet Windows height 83 mm width 83 mm depth 42 mm embedding depth 30.8 mm ambient air temperature for operation 0…40 °C ambient air temperature for storage -5…50 °C standards ETSI EN 301 489-4 EN 62684 EN 60950-1 directives 2004/108/EC – electromagnetic compatibility 2006/95/EC – low voltage directive product certifications EAC electrical insulation class Class II IK degree of protection IK04 IP degree of protection IP20 Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 127.0 g Package 1 Height 6.0 cm Package 1 width 8.5 cm Package 1 Length 8.5 cm Unit Type of Package 2 S02 Number of Units in Package 2 24 Package 2 Weight 3.292 kg Package 2 Height 15.0 cm Package 2 width 30.0 cm Package 2 Length 40.0 cm Package 3 Height 15 cm
